XELLAR Celebrates Trade Fair Premiere at the Tube

XELLAR Celebrates Trade Fair Premiere at the Tube

XELLAR Technologies is celebrating its debut at the Tube trade fair with the "X-Weld" module for welding pipes and profiles. This module can be used for microplasma, TIG, laser and high-frequency welding as required. It can reach speeds of up to 35 m/min for most processes, up to 200 m/min for the high-frequency version. The weld seams meet the specifications of the European standard EN 10217-7 DIN for welded steel pipes under pressure loads.

"X-Weld" is suitable for pipes of various cross-sections with diameters between 3 and 127 mm and wall thicknesses between 0.1 and 3 mm. Larger dimensions are possible on request with special solutions. It can also weld profiles with dimensions from 10 mm to 100 mm side length – even with complex geometries. The welding module can be used for a wide range of materials - from low-alloy to high-strength plain, stainless and duplex steels, as well as for aluminium, manganese, copper, brass and titanium. It can process both cold and hot-rolled, galvanized and non-galvanized, pickled and unpickled surfaces.

For many applications and industries

Thanks to its versatility and high performance, as well as the quality of its weld seams, XELLAR's innovation is suitable for numerous applications and industries. Longitudinally welded high-pressure pipes for pumps and battery cells can be processed with "X-Weld", as can pipes with high surface requirements. These include pipes for filling and desalination plants. The main target sectors are the automotive, construction and food industries.

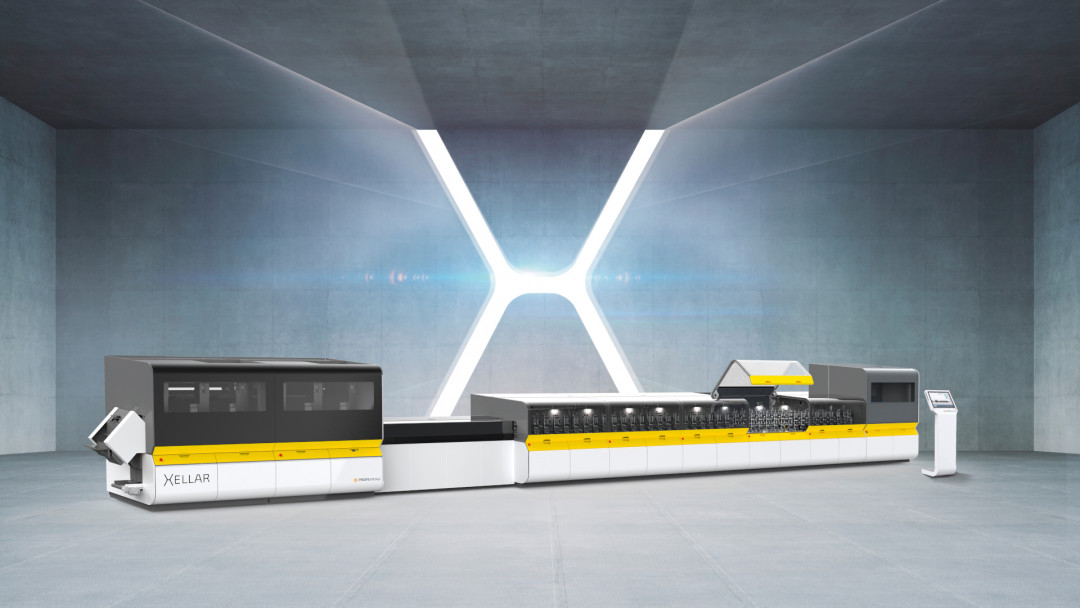

The "X-Weld" element can be flexibly integrated into the modular XELLAR roll forming systems, which are designed for material widths of 200, 300 and 400 mm. Like all of the modules, it is completely enclosed, meeting high standards in terms of occupational safety and environmental protection.

XELLAR roll forming systems are versatile thanks to their modular design and are suitable for use in many different industries. This allows companies to significantly reduce machine costs and manufacture different product ranges quickly and cost-effectively. In addition to "X-Weld", there are modules for roll forming, punching and cutting to length, which can be combined with each other as needed via plug & play and retrofitted at any time. Other processes such as plastic extrusion or the foaming, adhesive bonding and packaging of profiles are implemented on a customer-specific basis. XELLAR roll forming systems are also characterized by an ergonomic design, a compact, functional structure and intelligent sensor technology, monitoring and data communication.

Wire & Tube, Düsseldorf, Booth A14, Hall 6

(Source: XELLAR Technologies GmbH Press Release)
